Brand: Trust GReddy

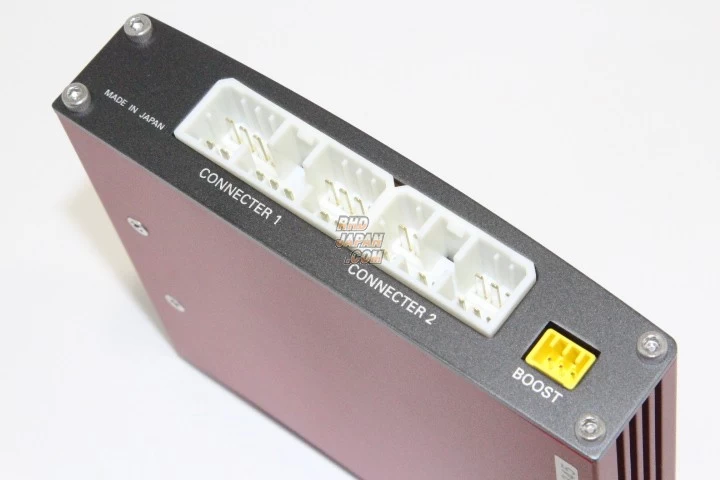

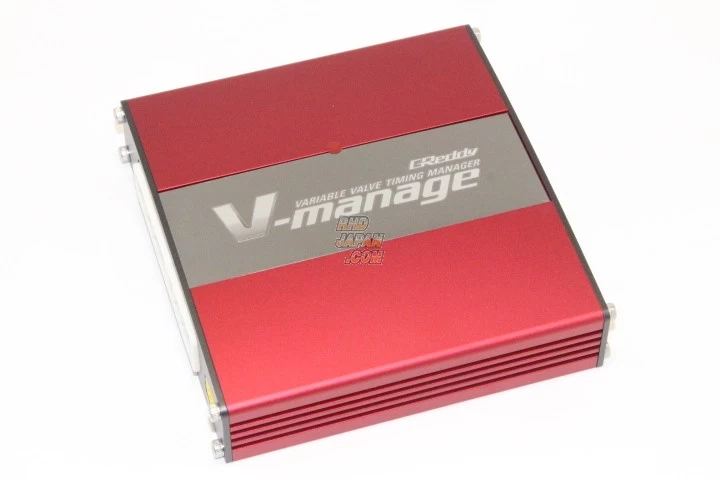

Product: V-Manage Main Unit
Part Num.: 15500551

COMPATIBILITY NOTES:
Must confirm if you have Variable Valve Timing
For Vehicles with Variable Valve Timing engines ONLY.
- TOYOTA VVT-i……1G, 1JZ, 2JZ, 1MZ, 3UZ, 2AZ
- TOYOTA VVTL-i……2ZZ-GE
- SUBARU AVCS……EJ207(GDB)
- HONDA i-VTEC……K20A
- NISSAN CVTC……VQ35DE
- MITSUBISHI MIVEC……4G63

SPECIFICATIONS:
- PRODUCT
It can be combined with e-manage ultimate, and with connecting to PC by DLC cable and USB cable, air-fuel ratio map and spark angle map and also variable valve timing map can be modifyed in real time.
- MAIN FEATURES
VVT engine’s valve timing can be changed as much as you wish.
It can display and record accurate and detailed data by using USB communication.
E-manage ultimate and v-manage can be used in combination and can use one datalogger simultaneously.
Each map can be switched on-off by recipient via dip switch, and if you switched all dip switch off, the control is returned to normal.
It can control V-shape engine and boxer type engine’s each intake and exhaust cam(4ch) simultaneously.
It can change engagement point of VVTL-I or i-VTEC.
- MAP
Valve timing compensation map:It can compensate valve timing map by 16×16 matrix map.
Valve timing compensation map:It can compensate valve timing map by 16×16 matrix map.
VVL MAP/VTEC MAP: High speed cam operation area can be set by 16×16 matrix map.
- DATA LOGGER
It can display valve timing ECU value, valve timing value in map, valve timing actual value.
It can display high speed cam engaging point of VVTL-I or i-VTEC.
- OS
OS:Windows2000, XP
CPU:Pentium3 500MHz or more
Memory (RAM) : 128MB or more
HDD : 20MB or more
Interface USB1.1 or later
Display: Resolution 1024 x 768 pixels or more, High Color (16 bit) or more
CD-ROM: Built-in or external type (for installation)
